Install the KiCad Plugin
Dec. 30, 2025 · ~4 min read
The Traceformer KiCad plugin exports your project as a complete package ready for automated schematic review. Follow this guide to download, install, and start using the plugin.
Download the Plugin
First, download the Traceformer KiCad plugin zip file. This package contains everything needed for the installation.
Download Plugin (v2.0.0) · View on GitHub
Compatible with KiCad 7.0 and later. The plugin is open source and available under the MIT license.
Install via Plugin Manager
KiCad includes a built-in Plugin and Content Manager that makes installation straightforward.
a. Open KiCad
Launch KiCad and open any project, or start from the main KiCad window.

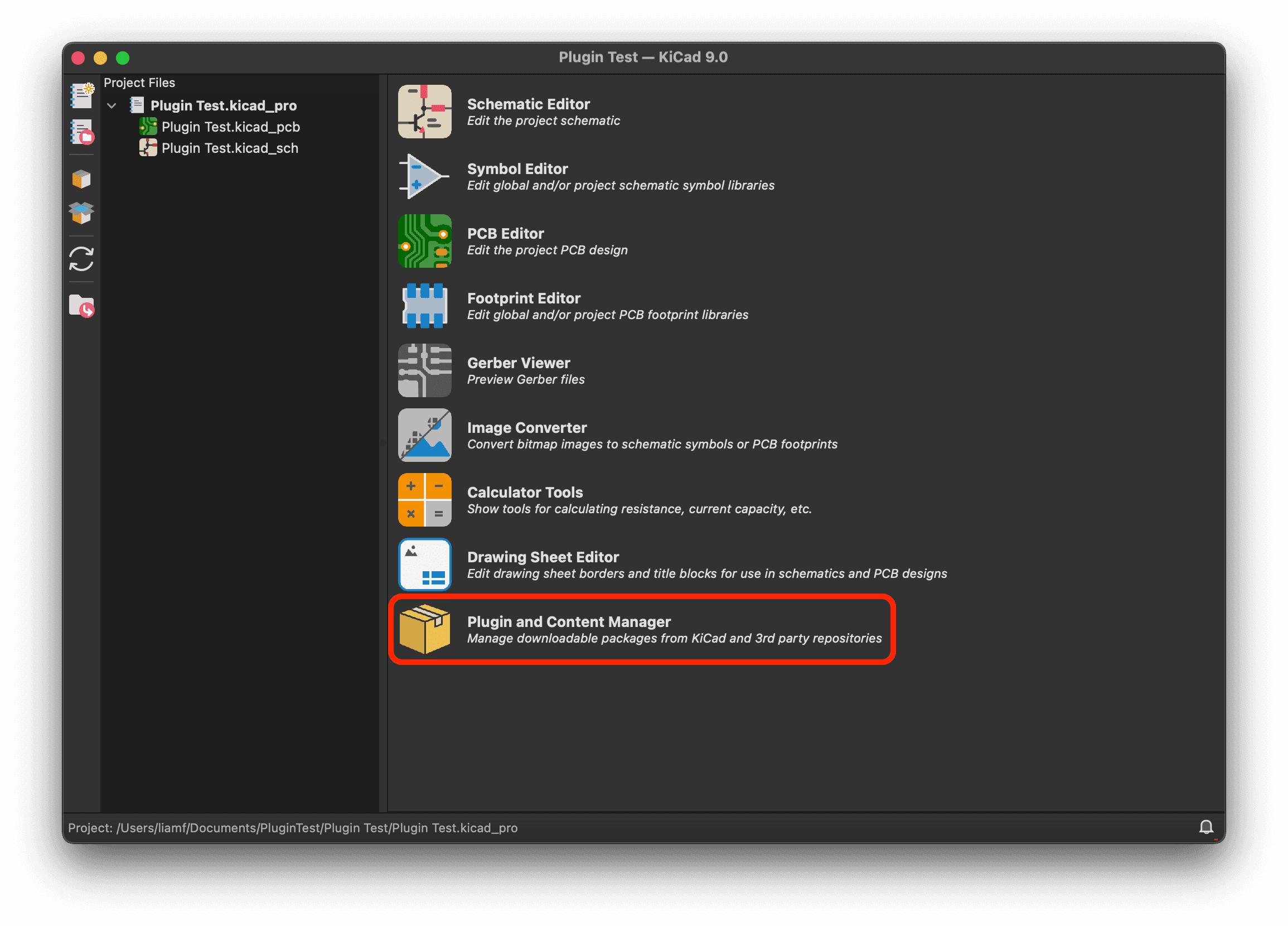

b. Open Plugin and Content Manager
Navigate to Plugin and Content Manager from the project window.

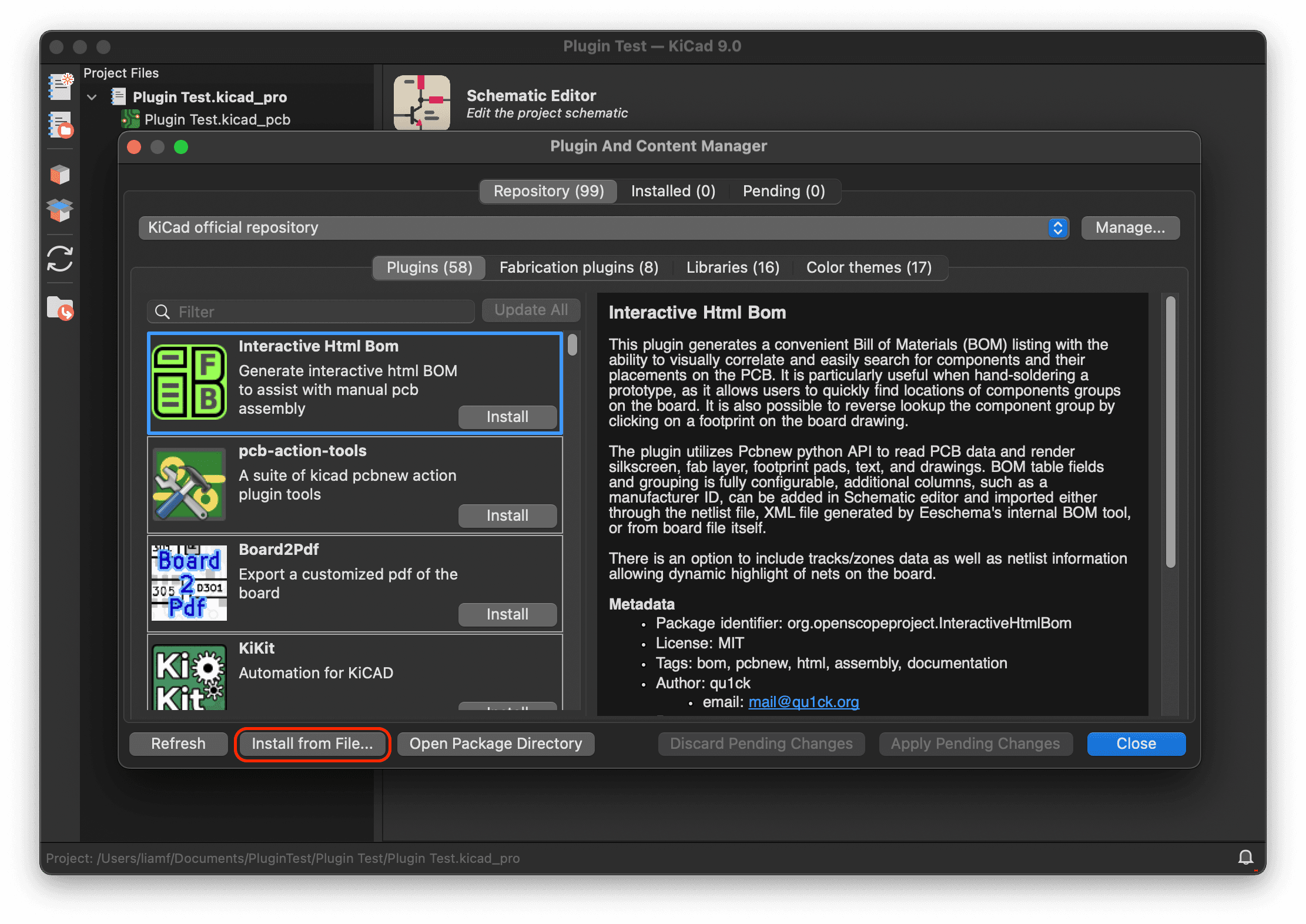

c. Install from File
Click Install from File... at the bottom of the Plugin Manager window. Select the zip file you downloaded.

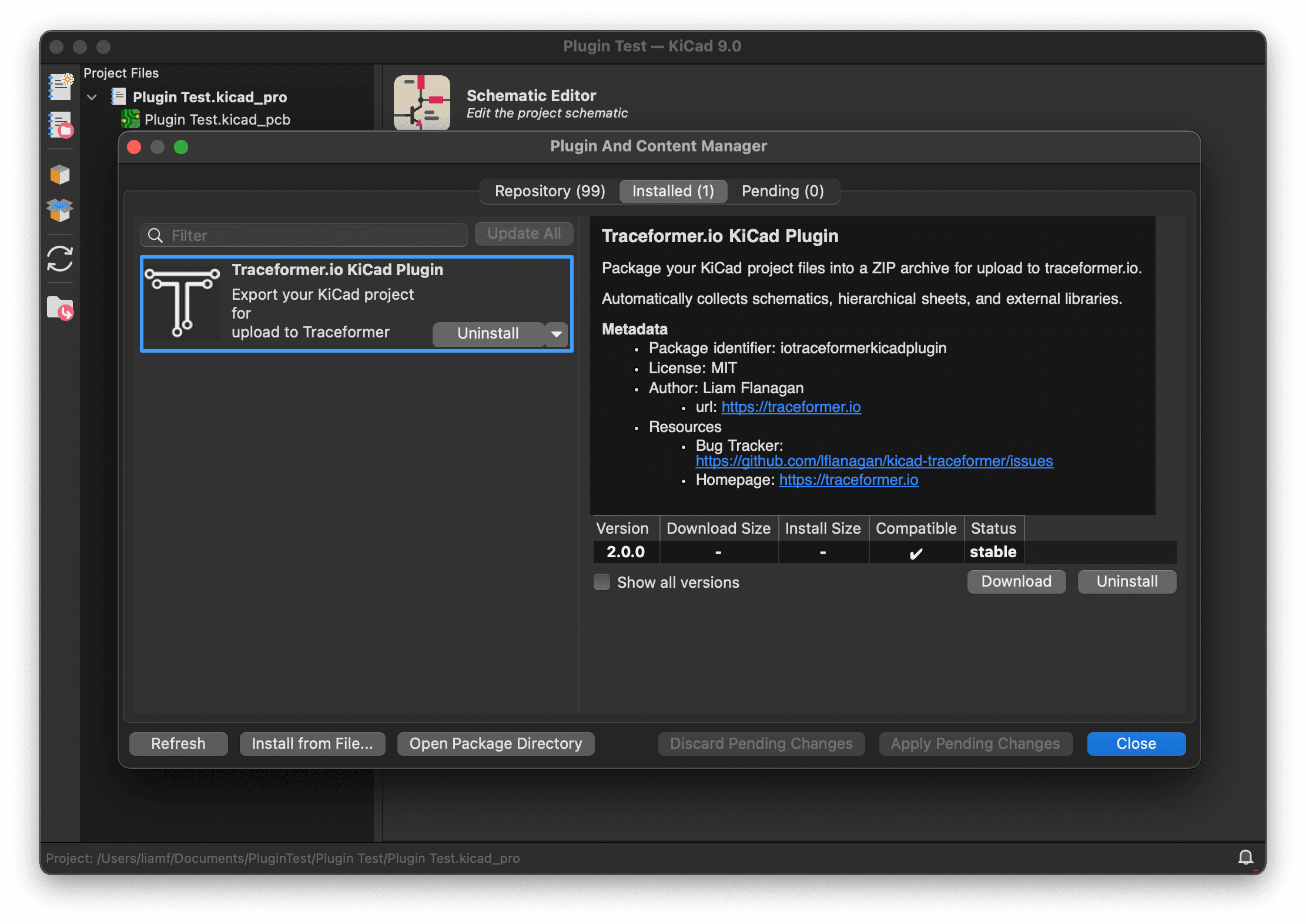

d. Confirm Installation
KiCad will verify the plugin and add it to your installed plugins list. You should see "Traceformer" appear in the list with a green checkmark.
Export Your Project
With the plugin installed, you can now export your KiCad project for review.

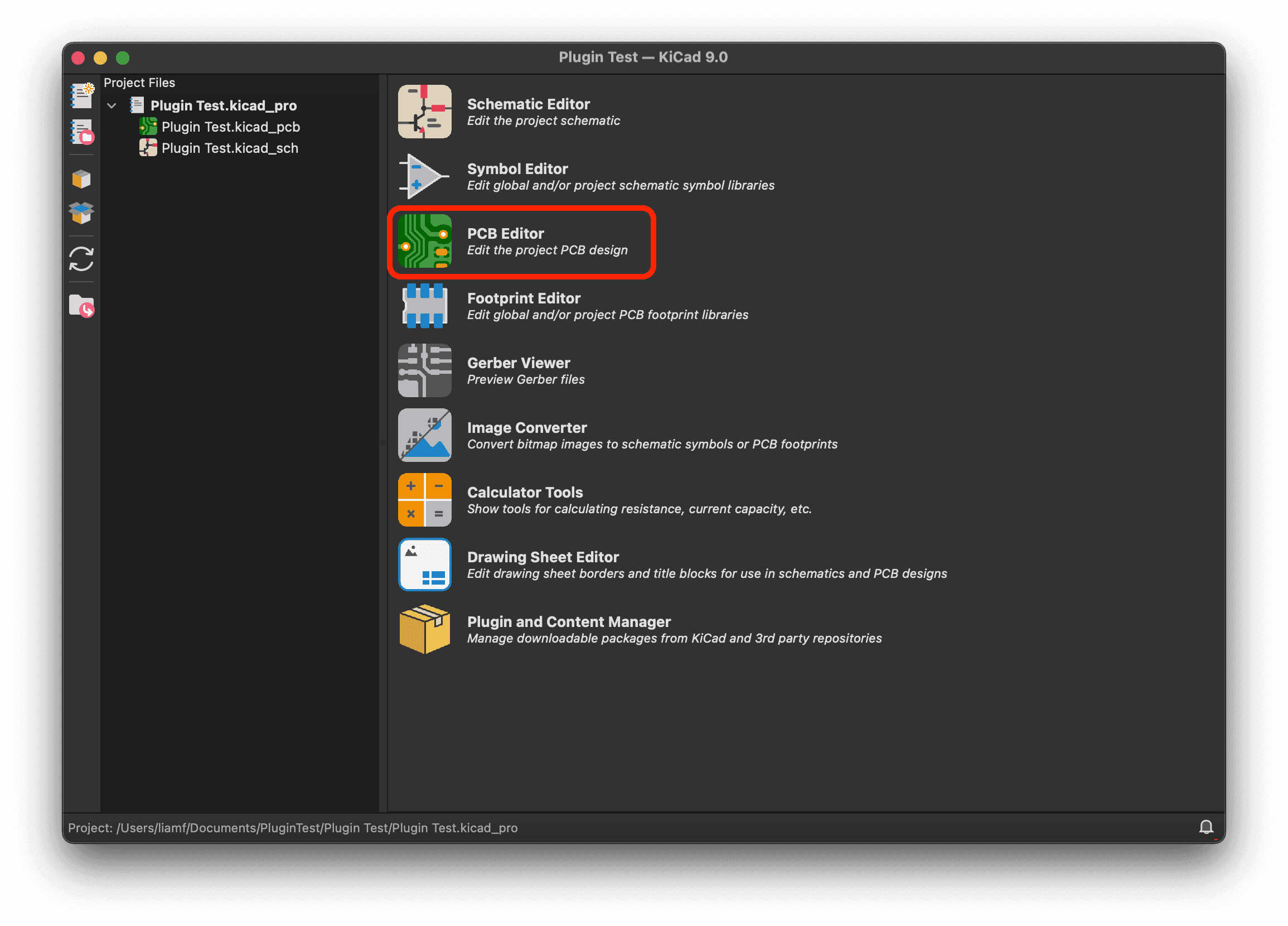

a. Open Your PCB in PCB Editor
Open your KiCad project and launch the PCB Editor. The plugin runs from within the PCB Editor, not the schematic editor.

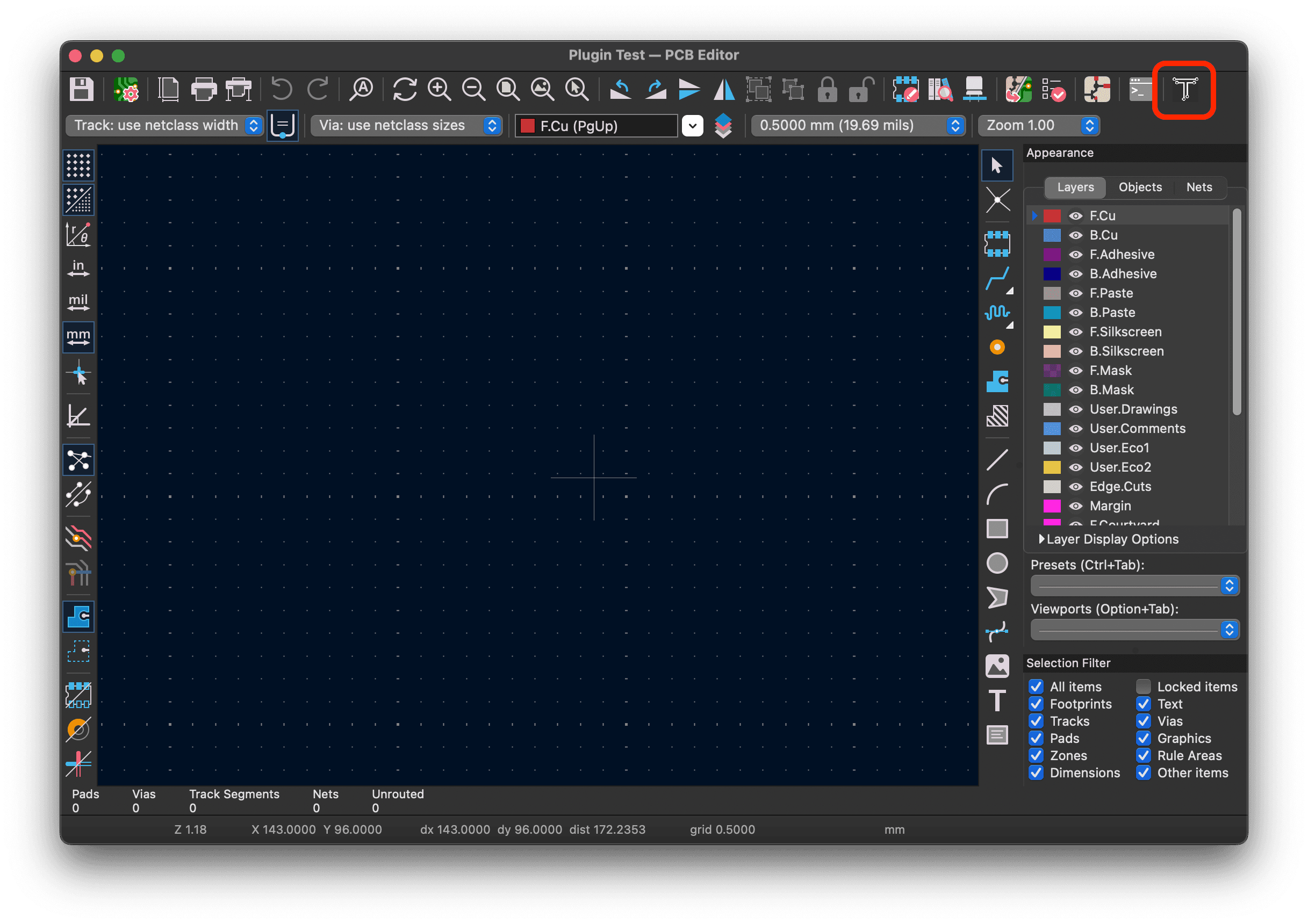

b. Click the Traceformer Icon
Look for the Traceformer icon in the PCB Editor toolbar. It appears as a small circuit trace logo. Click it to open the export dialog.

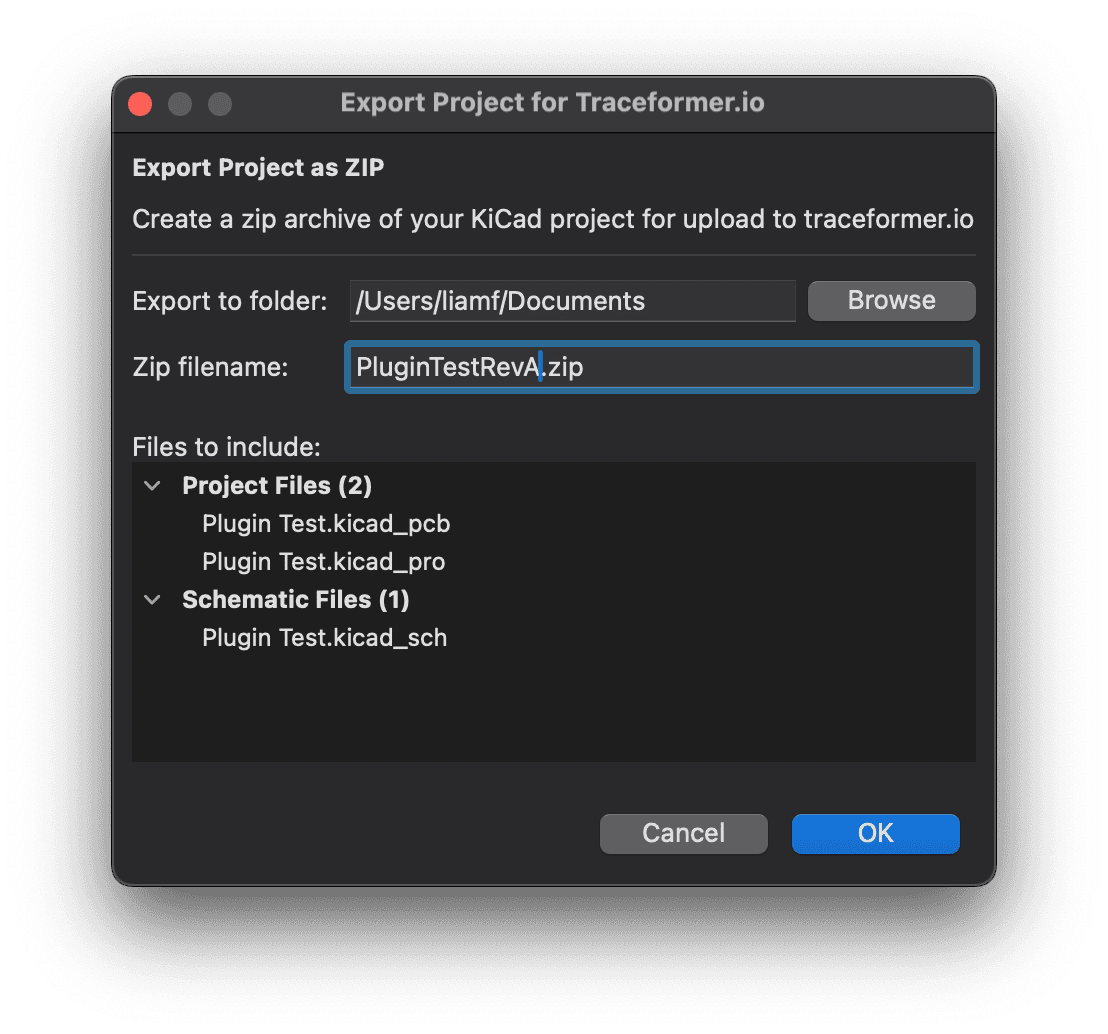

c. Export and Save
The plugin will package your schematic, netlist, and project files into a single archive ready for upload. Choose a location to save the export file. We reccommend adding a revision tag to the filename to help keep track of reviews.
Upload to Traceformer.io
Once you have your exported project file, upload it to Traceformer.io to start your automated review.
- Visit Traceformer.io in your browser and sign in or create an account.
- Drag and drop your exported project file into the upload area, or click to browse.
- Attach any relevant datasheets for components in your design.
Traceformer.io will parse your project, cross-reference your datasheets, and run a comprehensive schematic review. Results typically appear within a few minutes.
Troubleshooting
Plugin doesn't appear in toolbar
Make sure you're in the PCB Editor (Pcbnew), not the Schematic Editor. The plugin only appears in the PCB Editor toolbar. If it's still missing, try restarting KiCad after installation.
Installation fails with an error
Ensure you're using KiCad 7.0 or later. Older versions may not support the plugin format. Also verify the zip file downloaded completely and isn't corrupted.
Export produces an empty or incomplete file
Make sure your schematic is saved and annotated before exporting. The plugin reads from saved files, so any unsaved changes won't be included in the export.
